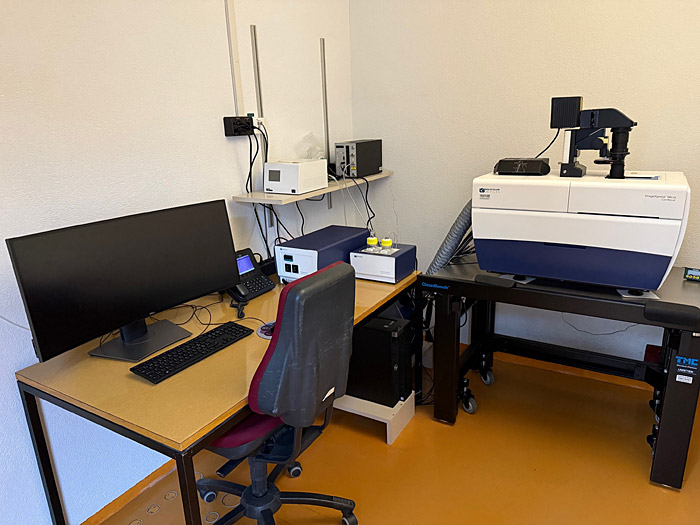

ImageXpress + Temp Controller + CO2 (Tel. 94 781)
Capabilities
- Automated imaging acquisition (fluorescence in widefield or confocal mode and/or brightfield )
- Suitable for high-content screening assays and for imaging and analysis of a large sample sets (multi-well plate from 6- to 1536 wells)
- Ideal for live and fixed specimens
- Temperature (heating 37°C and cooling 21°C), CO2 control, humidity
![system-new-local-web.jpg](/medecine/bioimaging/application/files/1517/3678/2253/system-new-local-web.jpg)
Detailed specifications
Objectives
- 4X CFI PLAN APO LAMBDA, 0.2 NA, 20mm WD
- 10x CFI PLAN APO LAMBDA, 0.45 NA, 4 mm WD
- 20X CFI PLAN APO LAMBDA, 0.75 NA, 1 mm WD
- 60X VC CFI PLAN APO 1.20 NA WATER IMMERSION, 0.31-0.28mm WD
Additional Objectives
- 20X, PH1 (0- 2mm) 0.45 NA, 7 mm WD
- 60X, Super PLAN FLUOR ELWD 0.70 NA, CC 0.1-1.3mm
Sources of Illumination
(200-250 mW, power output)
- DAPI : LED 390/22
- CFP : LED 438/29
- FITC :LED 475/28
- YFP : laser à 518 + filtre 510/25
- Cy3 : LED 555/28
- Texas Red : LED 576/23
- Cy5 : laser à 637 + filtre 637/12
- Cy7 : laser à 748 + filtre 748/12
Filters in 5-position Dichroic Wheel
- Position 1 Multi-Band Dapi, FITC, Cy3, Cy5 and Cy7 (FLd-415-500-581-652-757)
- Position 2 Dichroic for Texas Red (Di02-R594)
- Position 3 Multi-Band for CFP and YFP (ZT-445-520-rpc-UF1)
- Position 4 Empty
- Position 5 Empty
Filters in 8- position Emission Filter Wheel
- Position 1 Single-Band Emitter for DAPI 432/36
- Position 2 Single-Band Emitter for FITC 520/35
- Position 3 Single-Band Emitter for Cy3 600/37
- Position 4 Single-Band Emitter for CY5 692/40
- Position 5 Single-Band Emitter for CY7 819/44
- Position 6 Single-Band Emitter for CFP 482/25
- Position 7 Single-Band Emitter for YFP 562/40
- Position 8 Single-Band Emitter for Texas Red 631/36
Spinning Disk Confocal
Dual disk unit allowing selection between 3 modes A) 60 micron pinhole disk for your basic confocal requirements B) 50 micron slit for high throughput confocal requirements and C) wide field (not-confocal) imaging mode.
Detector
Andor Zyla 4.2 Camera , sCMOS, 4.2 MegaPixels, 100 fps, 16 Bytes, 82% max. QE.
Computer
- Window 10
- MetaXpress Version 6.6.1.42
