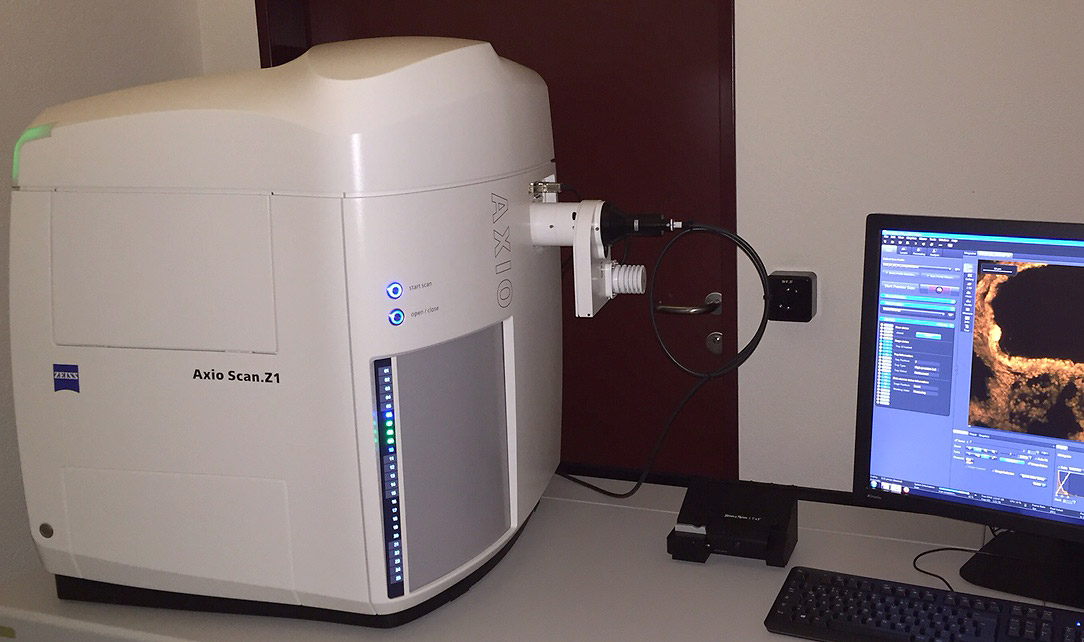

Zeiss Axioscan.Z1 (Tel. 94 782)
The Axio Scan.Z1 is a powerful slide scanner for automated imaging of large numbers (100 slides) of brightfield as well as multi-channel fluorescence slides.Axio Scan.Z1 features high numerical aperture dry objectives for high resolution and is able to scan whole 3D volumes.
CAPABILITIES
- Automated upright slide scanning microscope in widefield (fluorescence and/or brightfield)
- Suitable for high content screening assays and for imaging and analysis of a large sample sets
- Slide holders for standard slides (26 x 76 mm) or big slides (52 x 76 mm)
Detailed specifications
Objectives
|
![]() |
![]() |
![]() |
![]() |
Detectors
- Hitachi HV-F202FCL camera (color camera), 1600 x 1200 pixel (2 MP), 4.4 µm pixel
Objective | Micron/ pixel value |
5x | 0.88 |
10x | 0.44 |
20x | 0.22 |
40x | 0.11 |
- Hamamatsu Orca Flash 4 camera monochrome camera 16 bit (fluorescence camera), 2048 x 2048 pixel (4 MP), 6.5 µm pixel
Objective | Micron/ pixel value |
5x | 1.3 |
10x | 0.65 |
20x | 0.325 |
40x | 0.163 |
Illumination Filter Sets
Name | Excitation | Dichroic | Emission |
---|---|---|---|
Dapi | G 365 | 395 | BP 445/50 |
eGFP | BP 470/40 | 495 | BP 525/50 |
Cy3 | BP 550/25 | 570 | BP 605/70 |
mPlum | BP 587/25 | 605 | BP 647/70 |
Cy5 | BP 640/30 | 660 | BP 690/50 |
Computer
- Windows 7 64bits
- ZEN 2 (blue edition)
